Laser Stone Granite Bridge Saw Cutting Machine 3200x2000mm

    Buy cheap Laser Stone Granite Bridge Saw Cutting Machine 3200x2000mm from wholesalers

    Buy cheap Laser Stone Granite Bridge Saw Cutting Machine 3200x2000mm from wholesalers
    • Buy cheap Laser Stone Granite Bridge Saw Cutting Machine 3200x2000mm from wholesalers

    Laser Stone Granite Bridge Saw Cutting Machine 3200x2000mm

    Ask Lasest Price
    Certification : API
    Brand Name : Unique
    Model Number : zdqj-700
    Price : To Be Negotiated
    Payment Terms : L/C, T/T
    Supply Ability : 1000 Sets/Year
    • Product Details
    • Company Profile

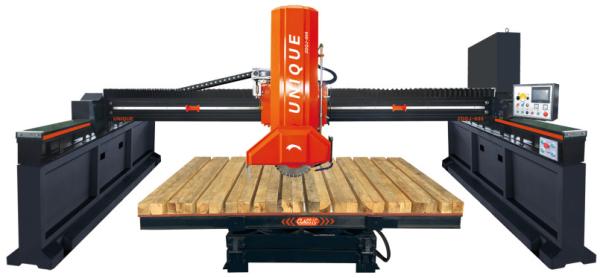

    Laser Stone Granite Bridge Saw Cutting Machine 3200x2000mm

    Zdqj-700 Laser Stone Granite Bridge Saw Stone Cutting Sawing Machinery

    Product Description

    ZDQJ-700 infrared automatic stone bridge cutting machine has three type, adopting PLC system and Human-machine interface, togethering with ultra-high precision rotary encoder positioning and infrared device, with Chinese & English double operation language, using inverter to control leftright feeding,adjusting the speed according to stone material, using hydraulic lifting system which equipted through 4 guide post, also this machine provide the unique side beam protection device, main spare parts adopt imported well-quality materials.

    The whole machine is featured with high cutting efficiency, high cutting precision, high stability, easy to operate, specially high value granite and big size marble.


    Technical Parameter
    Parameter
    Unit
    ZDQJ-450
    ZDQJ-600
    ZDQJ-700
    Blade diameter
    mm
    300-450
    350-600
    350-700
    Max processing size
    mm
    3200*2000*120
    3200*2000*180
    3200*2000*230
    Dimension of worktable
    mm
    3200*2000
    3200*2000
    3200*2000
    Worktable tilting degree
    °
    0-85°
    0-85°
    0-85°
    Worktable rotation degree
    °
    0-90°/0-360°
    0-90°/0-360°
    0-90°/0-360°
    Main motor
    kw
    15
    18.5
    18.5
    Gross motor
    kw
    21
    24
    24
    Water consumption
    m³/h
    4
    4
    4
    Outline dimension
    mm
    6000*4800*2900
    6000*4800*3100
    6000*4800*3200
    Gross weight
    kg
    5250
    5500
    5750


    Our Service

    * Training how to instal the machine, training how to use the machine.
    * Engineers available to service machinery overseas.
    * After-sales service 24 hour on line.

    If you have any problem,just conact our sales department,customer service department,etc at any time.
