Automatic Mono Bridge Saw Cutting Machine With Siemens PLC

    Buy cheap Automatic Mono Bridge Saw Cutting Machine With Siemens PLC from wholesalers

    Buy cheap Automatic Mono Bridge Saw Cutting Machine With Siemens PLC from wholesalers
    • Buy cheap Automatic Mono Bridge Saw Cutting Machine With Siemens PLC from wholesalers

    Automatic Mono Bridge Saw Cutting Machine With Siemens PLC

    Ask Lasest Price
    Certification : API
    Brand Name : Unique
    Model Number : ZDCM-400
    Price : To Be Negotiated
    Payment Terms : L/C, T/T
    Supply Ability : 1000 Sets/Year
    • Product Details
    • Company Profile

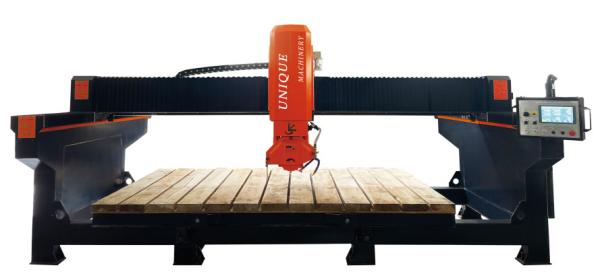

    Automatic Mono Bridge Saw Cutting Machine With Siemens PLC

    Zdcm-400 Xianda Automatic Mono Bridge Saw Machine with Siemens PLC for Slab Edge Cutting and Chamfering

    Product Description

    ZDCM-400
    Monoblock bridge cutting machine(special for Marble and sintered stone)
    This machine adopts Microcomputer system, easy to operate; Integrated structure, easy to install;
    The frame of the machine boday is proceesed and formed by CNC gantry milling center at one time, using high-precision linear guide sliders, grinding-grade ball screws, and high -end servo systems. It greatly improves the stablilty, processing accuracy and production efficiency of the equipment, and reduces the failure rate. it is suitable for all kinds of large-scale plate processing with high precision requirements and high value.


    Technical Parameter
    Parameter
    Unit
    ZDCM-400
    Blade diameter
    mm
    φ300-400
    Max processing size
    mm
    3200*2000*80
    Dimension of worktable
    mm
    3200*2000
    Worktable tilting degree
    °
    0-85°
    Worktable rotation degree
    °
    0-90°,0-360°
    Main motor
    kw
    15
    Water consumption
    m³/h
    3
    Outline dimension
    mm
    5000*3100*2600
    Gross weight
    kg
    5500


    Our Service

    * Training how to instal the machine, training how to use the machine.
    * Engineers available to service machinery overseas.
    * After-sales service 24 hour on line.

    If you have any problem,just conact our sales department,customer service department,etc at any time.
