    40m/S Diamond Rope Cutting Machine For Marble Granite Block

    Ask Lasest Price
    Certification : API
    Brand Name : Unique
    Model Number : CNC-2000
    Price : US $32,000-38,000 / Set
    Supply Ability : 1000 Sets/Year
    • Product Details
    • Company Profile

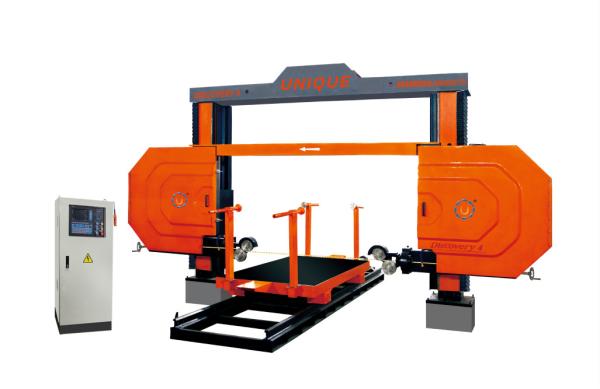

    40m/S Diamond Rope Cutting Machine For Marble Granite Block

    Product Description

    Easy Operation Diamond Wire Saw machine for Marble Granite Block

    CNC-2000/2500/3000 adopts CNC systerm, Four-Axis linkage, which can process the circular stone slab, roman column, numeral, letter, Chinese characters and other designed shapes.
    1. It has heavy load bearing structure, four orbits on each upright column, adjusted the balance by the rollers, with less friction and higher precision.
    2. The left and right frame achieve synchronized lifting by steering equipment on the upper frame. The lifting accuracy increased by the conbine of lead screw and double nuts.
    3. Cantilever part, firstly the lead screw and pole adjust the distance of guide wheel,guide wheel is controlled by CNC. Secondly in order to make the diamond wire rope cutting direction coincidence, reducer control the guide wheel rotating angle.
    4. Worktable is running by lead screw and railway.
    5. There has automatic alarm if wire broken.
    6. Aluminum wheel diameter is 1600mm.One fly wheel slide through sheave, oil pump control rope tension.

    Technical Parameter
    ParameterUnitCNC-2000CNC-2500CNC-3000
    Max processing sizemm2000*3000*15002500*3000*15003000*3000*1500
    Dimension of worktablemm2500*13002500*13002500*1300
    Main motorkw7.57.57.5
    Gross motorkw111111
    Outline dimensionmm6800*6200*38007800*6200*38008800*6200*3800
    Gross weightkg500055006000
    Water consumptionm3/h444

    Our Service

    * Training how to instal the machine, training how to use the machine.
    * Engineers available to service machinery overseas.
    * After-sales service 24 hour on line.

    If you have any problem,just conact our sales department,customer service department,etc at any time.
