Multi functional automatic stone rope saw cutting machine

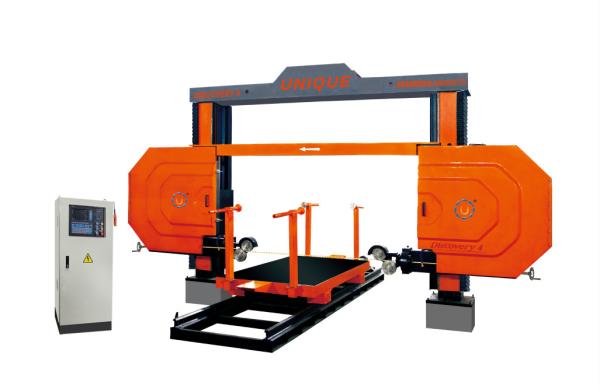

CNC Diamond wire saw stone cutting machine (CNC-2000/2500/3000)
adopts CNC systerm, Four-Axis linkage, which can process the
circular stone slab, roman column, numeral, letter, Chinese
characters and other designed shapes.
1. It has heavy load bearing structure, four orbits on each upright
column, adjusted the balance by the rollers, with less friction and
higher precision.
2. The left and right frame achieve synchronized lifting by
steering equipment on the upper frame. The lifting accuracy
increased by the conbine of lead screw and double nuts.
3. Cantilever part, firstly the lead screw and pole adjust the
distance of guide wheel,guide wheel is controlled by CNC. Secondly
in order to make the diamond wire rope cutting direction
coincidence, reducer control the guide wheel rotating angle.
4. Worktable is running by lead screw and railway.
5. There has automatic alarm if wire broken.
6. Aluminum wheel diameter is 1600mm.One fly wheel slide through
sheave, oil pump control rope tension.
Technical Parameter| Parameter | Unit | CNC-2000 | CNC-2500 | CNC-3000 |
| Max processing size | mm | 3000*2000*1500 | 3000*2500*1500 | 3000*3000*1500 |
| Dimension of worktable | mm | 2500*1300 | 2500*1300 | 2500*1300 |
| Main motor | kw | 7.5 | 7.5 | 7.5 |
| Gross motor | kw | 11 | 11 | 11 |
| Outline dimension | mm | 6800*6300*3800 | 7800*6300*3800 | 8800*6300*3800 |
| Gross weight | kg | 5000 | 5500 | 6000 |
| Water consumption | m3/h | 4 | 4 | 4 |
Fujian Jinjiang Xianda Machinery Co.Ltd was established in 1985 and
have been dedicated to the development and producing of a serious
of column making machine,wire saw stone cutting machine,block
trimming machine, bridge saw cutting machine, profiling stone
cutting machine etc.
With the rapid development of company ,we have passed the ISO9001
verifing, CE, and won many honory tiles include International Gold
Plant Quality Award etc. We keep " Advanced Tecnology and High
Quality" as our aim. We have developed a range of 'Xianda' Brand
special stone shape processing machines.Exhibition
Our Service* Training how to instal the machine, training how to use the
machine.
* Engineers available to service machinery overseas.
* After-sales service 24 hour on line.
If you have any problem,just conact our sales department,customer
service department,etc at any time.
