CNC Wire Diamond Wire Saw Machine Marble Granite Stone

    Buy cheap CNC Wire Diamond Wire Saw Machine Marble Granite Stone from wholesalers

    Buy cheap CNC Wire Diamond Wire Saw Machine Marble Granite Stone from wholesalers
    • Buy cheap CNC Wire Diamond Wire Saw Machine Marble Granite Stone from wholesalers
    • Buy cheap CNC Wire Diamond Wire Saw Machine Marble Granite Stone from wholesalers

    CNC Wire Diamond Wire Saw Machine Marble Granite Stone

    Ask Lasest Price
    Certification : API
    Brand Name : Unique
    Model Number : CNC-2000/2500/3000
    Supply Ability : 1000 Sets/Year
    • Product Details
    • Company Profile

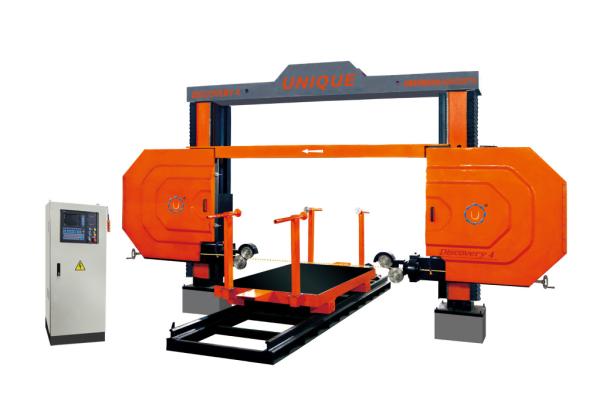

    CNC Wire Diamond Wire Saw Machine Marble Granite Stone

    Overseas Service After Sales CNC Wire Saw Stone Machine/ CNC Wire Saw Marble& Granite Stone Cut&Cutting

    CNC-2000/2500/3000 adopts CNC systerm, Four-Axis linkage, which can process the circular stone slab, roman column, numeral, letter, Chinese characters and other designed shapes.
    1. It has heavy load bearing structure, four orbits on each upright column, adjusted the balance by the rollers, with less friction and higher precision.
    2. The left and right frame achieve synchronized lifting by steering equipment on the upper frame. The lifting accuracy increased by the conbine of lead screw and double nuts.
    3. Cantilever part, firstly the lead screw and pole adjust the distance of guide wheel,guide wheel is controlled by CNC. Secondly in order to make the diamond wire rope cutting direction coincidence, reducer control the guide wheel rotating angle.
    4. Worktable is running by lead screw and railway.
    5. There has automatic alarm if wire broken.
    6. Aluminum wheel diameter is 1600mm.One fly wheel slide through sheave, oil pump control rope tension.


    Overseas Service After Sales CNC Wire Saw Stone Machine/ CNC Wire Saw Marble& Granite Stone Cut&Cutting Machine




    Technical Parameter
    ParameterUnitCNC-2000CNC-2500CNC-3000
    Max processing sizemm3000*2000*15003000*2500*15003000*3000*1500
    Dimension of worktablemm2500*13002500*13002500*1300
    Main motorkw7.57.57.5
    Gross motorkw111111
    Outline dimensionmm6500*6300*38007000*6300*38007500*6300*3800
    Gross weightkg500055006000
    Water consumptionm3/h444


    Fujian UNIQUE Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
    With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.


    Our Service

    * Training how to instal the machine, training how to use the machine.
    * Engineers available to service machinery overseas.
    * After-sales service 24 hour on line.

    If you have any problem,just conact our sales department,customer service department,etc at any time.
