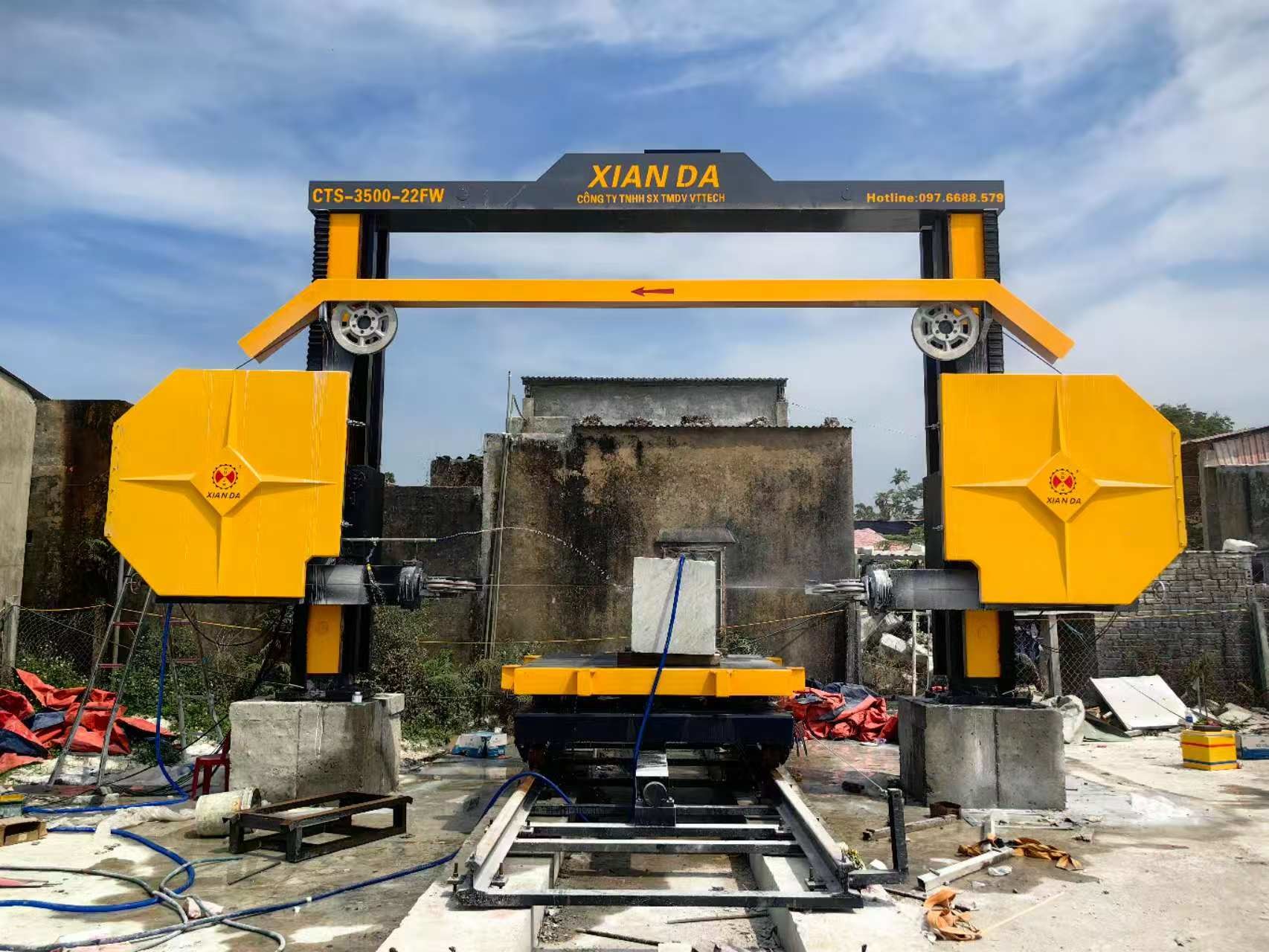

Diamond Wire Saw Machine High Precision Cutting

1. 4-Axis CNC Precision Control

   Full CNC system with 4-axis linkage for multi-dimensional cutting and shaping.

   Programmable workflows for columns, slabs, numerals, letters, Chinese characters, and custom geometries.
   Intuitive interface for easy operation and reduced training time.





2. Robust Mechanical Design

   16-Surface Guide Rail System: Ensures ultra-stable movement and minimizes vibration during operation.

   28 Heavy-Duty Rolling Wheels: Enhance durability and smooth motion for long-term reliability.
   Synchronous Lifting Mechanism: Intermediate drive system guarantees balanced force distribution during cutting.


   Technical Parameter


   Parameter	Unit	CTS-3500-18	CTS-3500-21	CTS-3500-22FW
   Max processing size	mm	3500*3000*1800	3500*3500*2100	3500*3500*2200
   Trolley size	mm	1800x2000	2000x2500	2000x2500
   Table bearing weight	T	35	50	50
   Wire speed	m/s	0~40	0~40	0-40
   Main motor	kw	11	15	15
   Outline dimension	mm	9300x7200x4800	9800x7800x5600	8800x7800x5750
   Gross weight	kg	9300	11000	10500
   Water consumption	㎡h	4	4	4























   About Us
















Fujian Xianda Machinery Co.,Ltd is a leading company for stone cutting machines in China, established in 2002and covers 20,000'area which located in Jinjiang Wuli lndustrial area, near by the longest and oldest stone bridge inthe world, named “Wuli Bridge"and next to biggest stone markets in the world- Shuitou. Close to the main port in
Fuiian-Xiamen port makes the shipment much more convenient.With 38 years experience specializing in developing and producing a series of column processing machinesbridge cuttina machines, diamond wire saw machinesprofilina linear machine. baluster cuttina machines. We occu-nied 80% market in China for column processing machines. and own 52 overseas countries users. Like Bussia.lndiaVietnam,Poland,Croatia.Bosnia,Albania,Latvia,France, Amenia,Uzbekistan,America.Canada,Brazil, Pakistan,SaudiArabia.UAESouth Africa,Eqypt,lran,Tunisie,Zambia.
After-sales service is available for overseas markets.
Since its foundation in 2002, we keep “Top Technology and Superior Quality"as our standard for all machinesand got CE,ISO9001 Quality Gold Award .etc.“China Recommend Building Manufacture Enterprise”,“3A Enterprise Credit Evalution”, etc for company. Anowe are alwavs the sponsor for education as our CEO Mr Rov is enthusiastic about the public welfare establishments.Xianda always keep "Creat the highest value of vour stoneas purpose, and offers the best stone cuttind solutioncustomers from both domestic and overseas.
Your visiting and contactina is alwavs welcomed, We looking forward to serve vou.
