    Multifunctional 5 Axis CNC Bridge Cutting Machine for Stone Processing

    Ask Lasest Price
    Brand Name : Xianda Machinery
    Model Number : Create 450/600
    Certification : API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
    Price : To Be Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000 Sets/Year
    Delivery Time : 30 days
    • Product Details
    • Company Profile

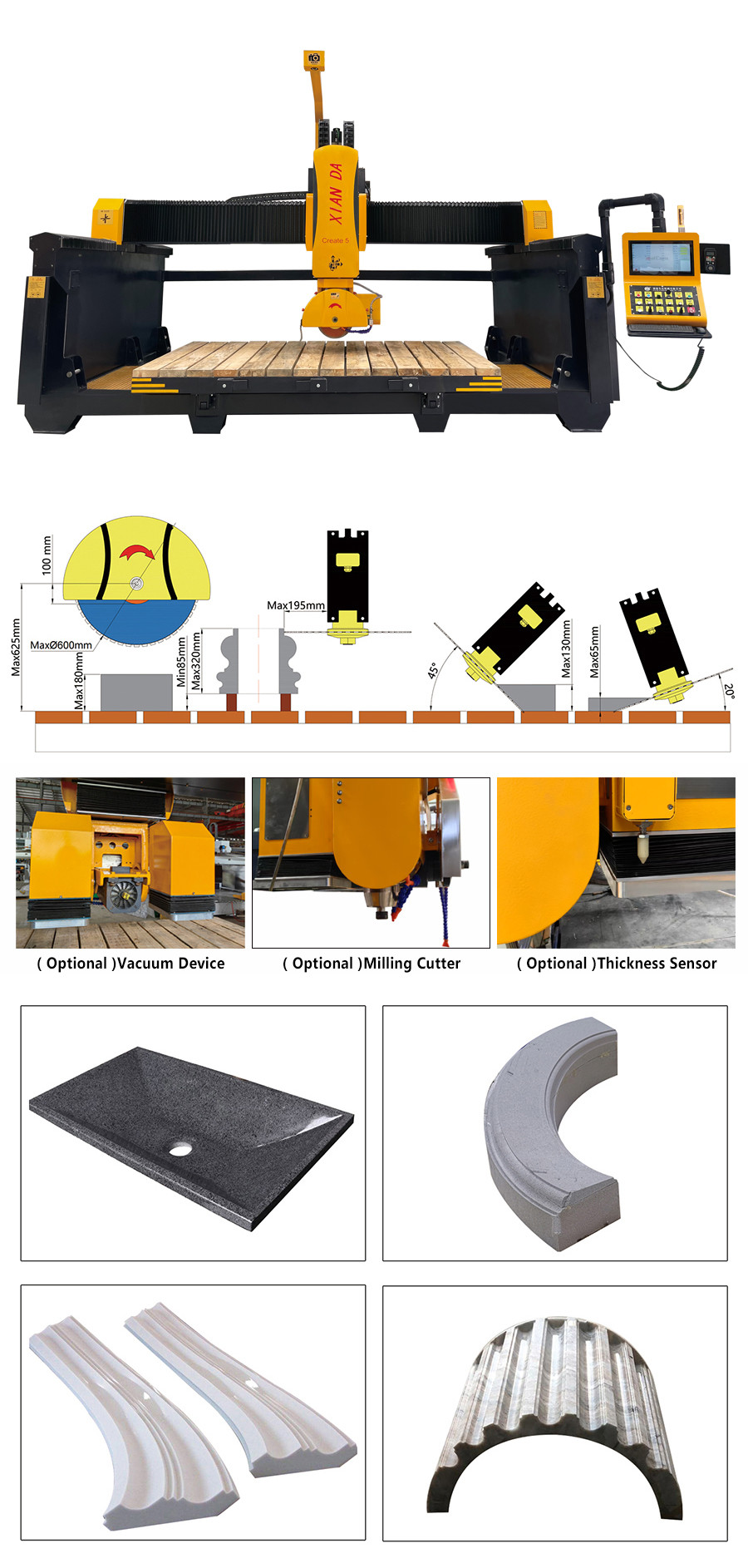

    Multifunctional 5 Axis CNC Bridge Cutting Machine for Stone Processing

    5 Axis Bridge Cutting Machine: Precision and Efficiency Redefined


    Unparalleled Precision

    The 5 Axis Bridge Cutting Machine is engineered to deliver unmatched precision in stone, marble, granite, and other hard material cutting. With its Five-axis linkage system, it enables complex 3D cutting, carving, and shaping, ensuring that even the most intricate designs can be flawlessly executed. Whether you're working on high - end architectural projects or creating custom stone artworks, this machine provides the accuracy needed to bring your vision to life.​
    • Advanced CNC control system for highly accurate cutting paths​
    • High - resolution linear guides and ball screws for smooth and precise movement​
    • Automatic tool compensation to maintain consistent cutting quality

    Multifunctional 5 Axis CNC Bridge Cutting Machine for Stone Processing

    Multifunctional 5 Axis CNC Bridge Cutting Machine for Stone Processing


    Construction Details:

    • Heavy - duty cast iron base for enhanced stability​
    • High - performance spindle motor with long service life​
    • IP65 protection rating for electrical components, ensuring durability in harsh working environments

    Interface Benefits:

    • Touch - screen display for convenient operation​
    • Built - in CAD/CAM software for easy design import and modification​
    • Error - prompt function for quick troubleshooting
    • Multifunctional 5 Axis CNC Bridge Cutting Machine for Stone Processing
    • Technical Specifications

    • ParameterUnitCreate 400Create 600
      Blade diameter rangemm350-450350-600
      Max processing sizemm3200*2000*1203400*2000*180
      Lifting strokemm300500
      Worktable sizemm3200*20003400*2000
      Table tilting degree°0-850-85
      Head rotating degree°0-3600-360
      Head tilting degree°0-900-90
      Air speedm/min1515
      Repeated accuracy of positioningmm0.1mm/10000.1mm/1000
      Main motorkw18.5(Permanent Magnetic Synchronous Motor)22(Permanent Magnetic Synchronous Motor)
      Gross powerkw2630
      Water consumptionm³/h33
      Outline dimensionmm5600*3600*35005800*3650*3900
      Gross weightkg60007500
    • Customization Options

      We understand that every customer has unique requirements. That's why we offer a range of customization options for our 5 Axis Bridge Cutting Machine. From choosing the right cutting tools to integrating additional features, we can tailor the machine to meet your specific needs.​
      Customization Services:​
      • Customized cutting head configurations​
      • Integration of specialized material handling systems​
      • Software customization for specific industry applications
      • After - Sales Support​

      • Our commitment to your success doesn't end with the purchase. We provide comprehensive after - sales support, including installation, training, maintenance, and technical assistance. Our team of experienced technicians is always ready to help you keep your machine running at its best.​

      • Invest in the 5 Axis Bridge Cutting Machine today and experience the future of precision cutting technology! Contact us now for more information and a personalized quote.
