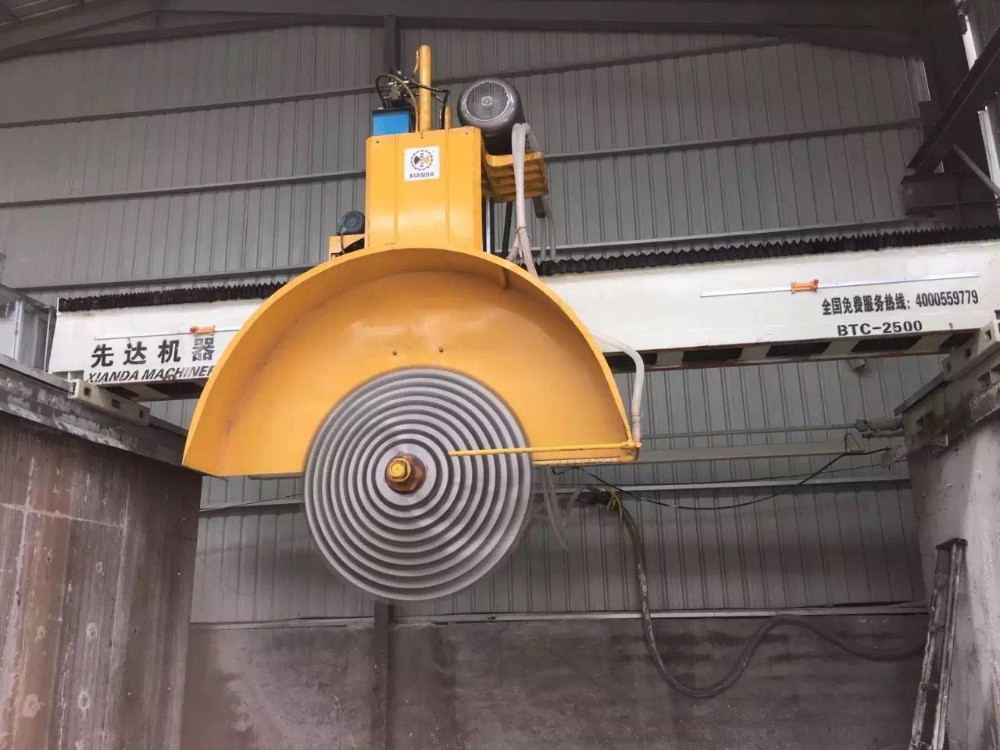

Product Description:
This machine use inverter to control the left-right feeding, it can
adjust the speed according to different kind stones. it uses
hydraulic lifting system, forward-backward slicing use
high-precision screw nut driving, automatic slicing, main parts
adopt imported materials; The block can be placed in the ground
directly to save workable and its maintenance costs: Thus the whole
machine is featured as high cuting efficiency, high slicing
precision, flatness of plate after cuting, high
stability,easy-operating to suit specially cutting granite and
marble block with high value.
Support and Services:
Our Bridge Saw Cutting Machine product comes with comprehensive
technical support and services to ensure that your machine operates
at peak performance. Our team of experienced technicians is
available to provide installation assistance, training, and ongoing
maintenance and repair services.
We also offer a range of customization options to help tailor the
machine to your specific needs. This includes custom blade sizes,
cutting depths, and other features to help maximize efficiency and
productivity.
In addition, we provide timely and efficient customer support to
address any questions or concerns you may have. Our goal is to
ensure that you are completely satisfied with your purchase and
that your machine operates smoothly for years to come.
Parameter | Unit | BTC-2200 | BTC-2500 | BTC-2800 |
| Max blade diameter | mm | 2200 | 2500 | 2800 |
| Left and right travel | mm | 3800 | 3500 | 3200 |
| Moving front&back travel | mm | 2200 | 2200 | 2200 |
| Lifting stroke | mm | 1320 | 1320 | 1320 |
| Main motor | kw | 45/55 | 45/55 | 55/65 |
| Gross power | min/㎡ | 57/67 | 57/67 | 67/77 |
| Outline dimension | mm | 8000*4800*3700 | 8000*4800*3700 | 8000*4800*3700 |
| Water consumption | m³/h | 15 | 15 | 15 |
| Gross weight | kg | 14000 | 14500 | 15000 |
