Product Description:
This machine adopts CNC control, four-spindle linkage, which can
process the circular stone slab, column, numeral, leter,Chinese
characters and other shapes for the stone. This machine is good
quality with high processing precision.
Applications:

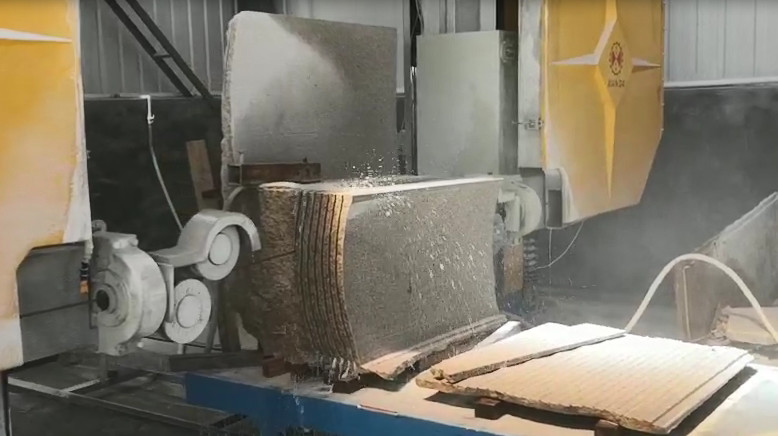

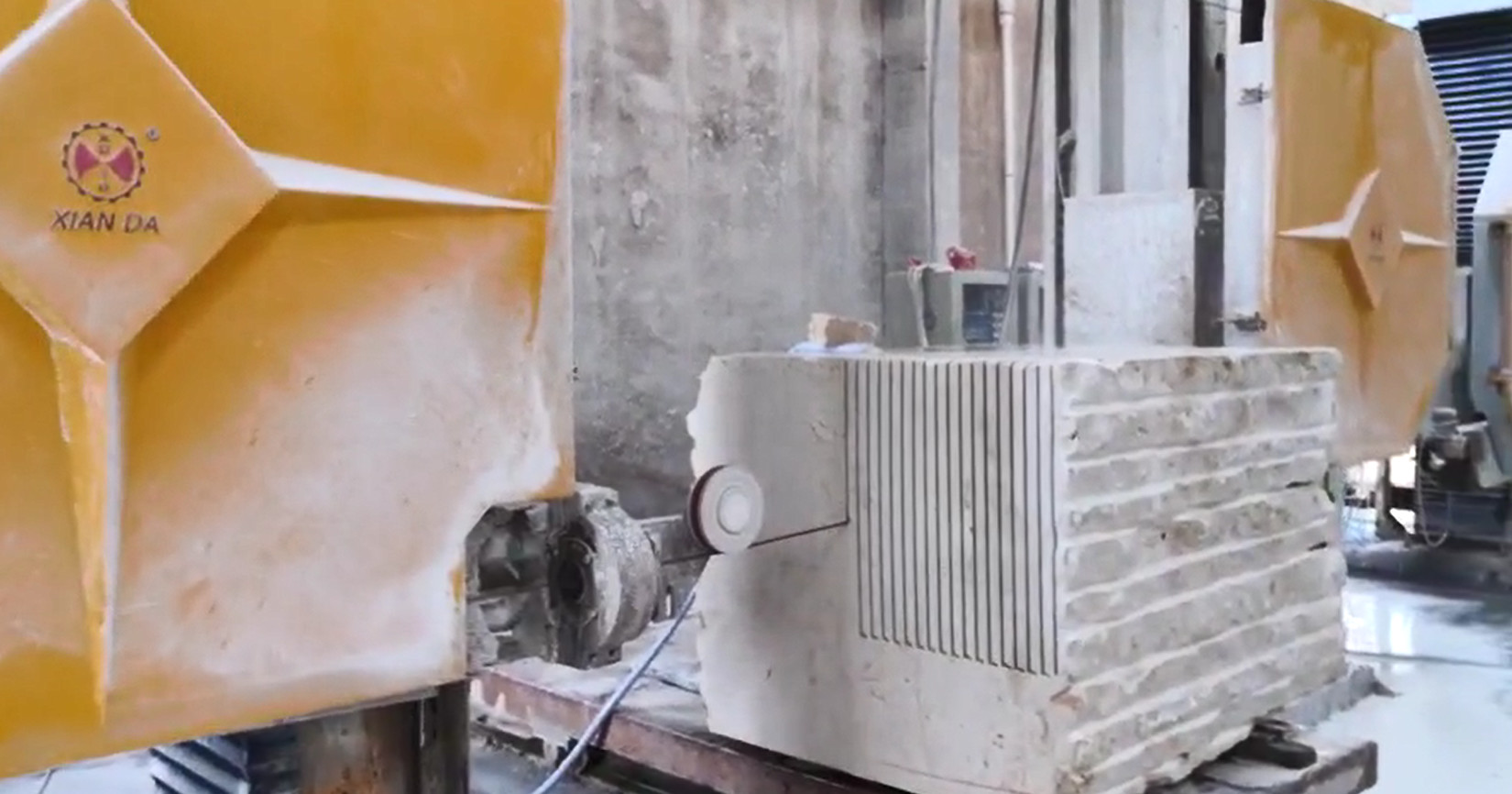

Perfect for cutting marble and special shape stones, this diamond
wire saw machine is versatile and can be used in a variety of
applications. From countertop fabrication to sculpture work, the
CNC-2000/2500/3000 is the perfect tool for the job.
Customization:
Customize the machine according to your needs
Parameter | Unit | CNC-2000 | CNC-2500 | CNC-3000 |
Max processing size | mm | 2000*3000*1500 | 2500*3000*1500 | 3000*3000*1500 |
Wheel diameter | mm | 1600 | 1600 | 1600 |
Trolley size | mm | 1300*2500 | 1300*2500 | 1300*2500 |
Table bearing weight | T | 15 | 15 | 15 |
Main motor | kw | 11 | 11 | 11 |
Wire speed | m/s | 0-40 | 0-40 | 0-40 |
Outline dimension | mm | 6800*6300*3800 | 7800*6300*3800 | 8800*6300*3800 |
Gross weight | kg | 5500 | 5750 | 6000 |
Water consumption | m³/h | 4 | 4 | 4 |
